Application:

Natural environment-friendly latex mattress, high-grade furniture latex cushion core, latex bedding, home accessories.

Main Specifications:

Product width: 1500-2600

Heating temperature: normal temperature ~ 220 ℃

Heat source: steam direct injection type, steam heat exchanger

Line speed: 3m-15m / min

Product thickness: 10mm ~ 100mm

Main Features:

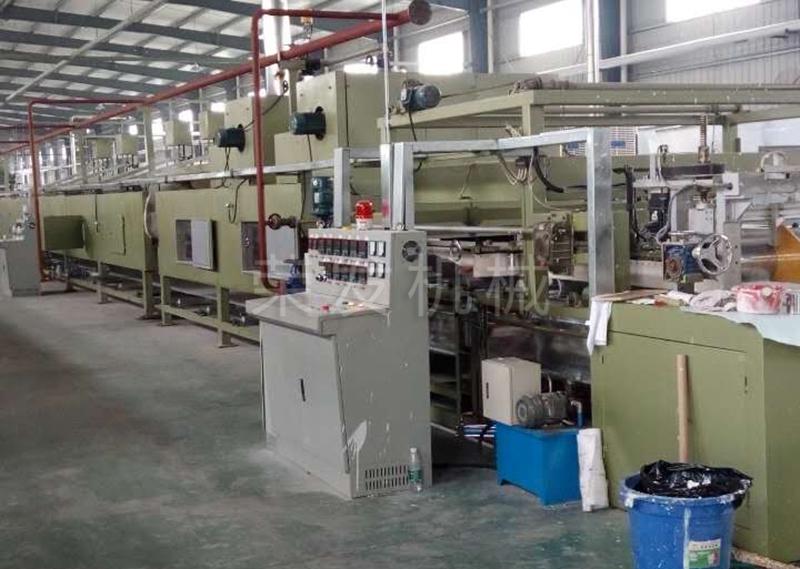

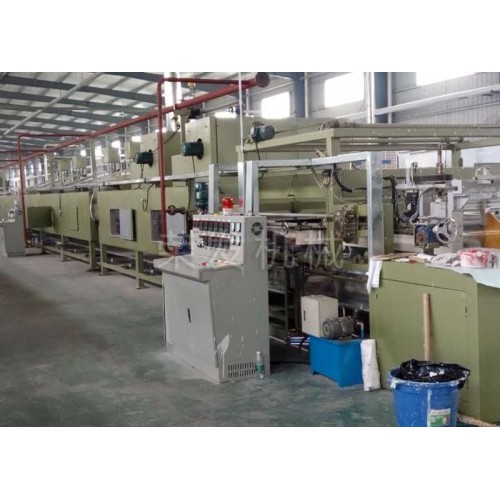

The production line of latex mattress is mainly composed of numerical control rubber scraper, steam curing setting drying room, three-way washing water pressure roller group and three-layer drying room.

① Foam glue scraper, full automatic numerical control.

② Steam direct injection curing setting drying room, inside and outside the drying room all stainless steel assembly, latex curing fast in high package and humidity drying room, good elasticity.

③ Three washes remove impurities and odor, restore latex natural flavor.

④ The three-layer drying room can reduce the floor space and is environmentally friendly, energy-saving and efficient.

⑤ Thickness, speed, width, temperature, humidity and air volume can be automatically controlled by man-machine interface.

Production Process:

Latex Foaming → Machine Scraping → Infrared Radiator → Curing Drying Room → Three Courses Of Washing Water → Three Layers Of Drying → Edge Cutting
