Application:

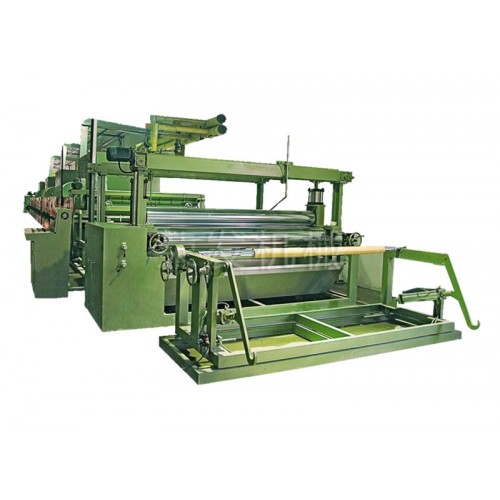

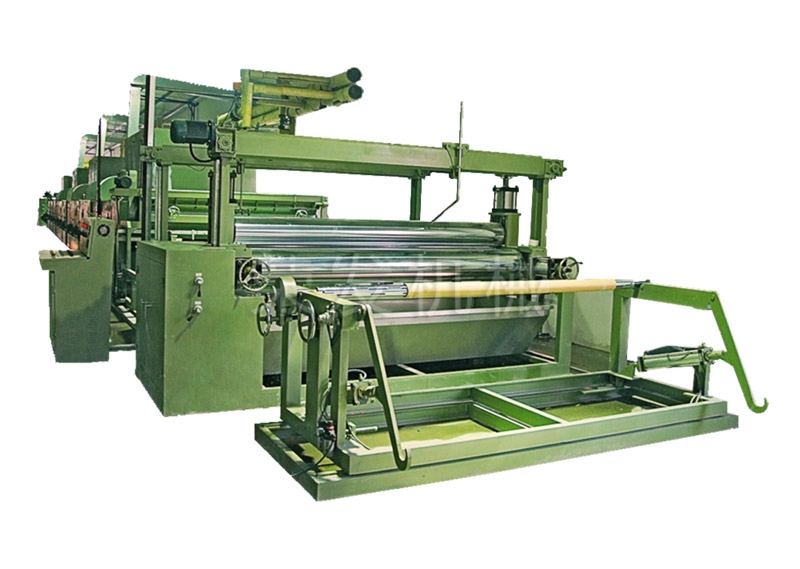

The mesh belt type drying machine is suitable for the production of high temperature dust filtering non-woven fabric, PK cotton, furniture pad cotton, chest Cup cotton, mask cotton, etc.

Main Specifications:

Product width: 1500～2800

Heating temperature: normal temperature～220℃

Heat source: heat exchange with heat transfer oil, direct combustion of natural gas, and external heating air.

Line speed: 5m～20m/min

Heat consumption: 200,000 to 400,000 kcal/section

Product thickness: 1mm～150mm

Main Features:

① The drying room adopts Teflon mesh belt.

② Net belt edge detection: the use of far-infrared radiation edge detection tracking, correction using electric adjustment with ball screw.

③ Hot air convection circulation, high thermal efficiency, uniform temperature in the drying room, product hardness and thickness can be adjusted according to needs.

④ Speed, width, temperature, humidity and air volume can be automatically controlled by man-machine interface.

Production Process:

Cloth Laying Machine → U-type Cloth Storage Tank → Two Roll Cross Rolling → Glue Scraper → Glue Feeder → Drying Room → Cloth Storage Machine → Winder
